Coated Wire, Non-Electric
Horsecote®
Horsecote® is a strong, flexible, low-maintenance coated wire designed for horse safety. The result is a good-looking and practical horse fence built to last.
Colors:
Black, White, Brown
Request a free estimate
Key Features
Product Composition
- Long-Life UV Stabilized Non-Conductive Medium Density Polyethylene
- 12.5 Gauge (2.5 mm) High Tensile Wire
- Molecular Bonding of plastic and wire for strength & durability
Benefits:
- Flexibility: No splitting, no cracking, no impalement, lower vet bills
- Strength: Wire minimum breaking strength of 1,320 lb (600kg)
- Visually Appealing: The coating improves visibility and gives the wire a clean look
- Longevity: Backed by 30-year limited manufacturer’s warranty
- Low Maintenance: No stretched wires, easy to tension and install
- Electrifiable: No
How It Works
- Horsecote® flexes around 6 – 8 inches (18cm) on impact and returns back to its original shape.
- The high-tensile wire inside has a 1,320 lbs (1,905kg) min. breaking strength and doesn’t stretch.
- Coated wire and hardware are designed to handle any climate and are installed in over 40 countries.
Options Available
- Colors:
Black
White
Brown
- Overall Diameter: .295″ +/- .005″
- Roll Lengths:
820′ (250m)
1000′ (305m)
1320′ (400m)
Additional Resources:
Why Horsecote®?
Flexible & Smooth
Flexes 6-8 inches on impact and snaps back into place. Free from sharp edges, exposed wires, or splinters. Improved visibility.
Strength
Wire minimum breaking strength of 1,320 lbs (600kg). Returns to its original shape upon impact.
Simple Installation
Features a patented procedure for attaching, joining and tensioning.
Consider Electric
Some form of electrical deterrent is recommended for the safety of horses, longevity of the fence, and especially as a training aide for your horses. Find our popular Hotcote® coated wire here.

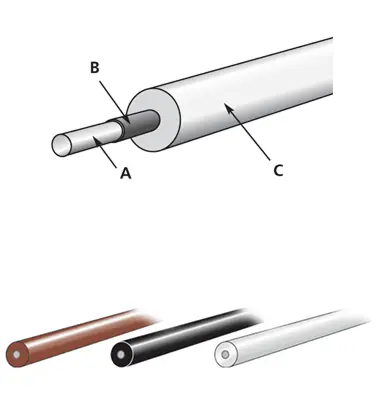

Product Composition:
A. 12.5 Gauge (2.5 mm) High Tensile Wire
B. Molecularly Bonded to the wire
C. Long-Life UV Stabilized Non-Conductive Medium Density Polyethylene
Trusted by Equine Professionals
Over 1,000 installations around the world.
Anthony M.
Rosemont Stud
“Safety has to come first for every farm. The fact that Horserail looks so good as well is a huge bonus! I love it and will be opening more and more paddocks at Rosemont using the Horserail product.”
Eddie R.
Geisle Park
“We are delighted with the safety and minimal maintenance that Horserail offers. We recently had a horse hit a Horserail fence at pace and by the time we got down to the paddock we could not work out which horse had hit the fence!”
Gary M.
Grange Thoroughbreds
“We have used Horserail® exclusively on our new property, for safety, aesthetics, practicality and cost. I would not use any other product and would highly recommend it to anyone.”
Vet-Recommended
Horserail puts safety first.
The flexibility, smoothness and strength of this coated wire not only protect the horse and rider from injuries caused by conventional railing, these characteristics also provide a long lasting, attractive fence that requires little maintenance.
Horsecote® is designed to be easily installed using a patented procedure for attaching, joining and tensioning. There is no stripping, crimping or notching needed and the end result is a properly installed fence with no exposed wires.
About Us
Built on experience.
Horserail combines decades of fencing experience with the practical insights of experienced equine professionals.
- 30+ Years of Fencing Experience
- Designed, Tested, and Manufactured in the USA
- Successfully Installed Across 40+ Countries
- Up to a 30 Year Limited Manufacturer’s Warranty
How to get Horsecote®
Configure Your Fence
Answer a few questions about your fencing project.
Connect With an Expert
A local Horserail expert will reach out to help you.
Provide a Drawing
An expert will help you determine the materials you need and provide pricing.
Installation
Your distributor can help you find a contractor, or you can install it yourself.
Frequently Asked Questions About Horsecote®
How much does Horsecote® cost?
The cost of Horsecote® varies widely depending on your fence configuration and layout. Factors such as the number of rails or strands of wire, post spacing, gates, cross-fences, and more all affect the final price.
To get an exact quote for your project, request a fencing estimate here.
When you request an estimate you will be connected to a local expert who can answer all of your questions about price and can tailor a solution based on your budget.
How long will Horsecote® last?
Many Horserail customers have had their fence standing strong for more than 30 years. Many also expand their properties over time and continue choosing Horserail for new paddocks and pastures.
Its durability comes from both the materials and the engineering behind it. Horsecote® is made from UV-stabilized medium-density polyethylene bonded to 12.5-gauge (2.5 mm) high-tensile wire. We source these materials from vetted U.S. suppliers and work closely with them to ensure consistent quality and performance.
Horsecote® is backed by a limited manufacturer’s warranty of up to 30 years.
What post spacing can I use?
For rail fences, we recommend post spacing of 8–12 ft (2.4–3.6 m).
For coated wire fences, recommended post spacing is 8–20 ft (2.4–6.1 m).
As a general rule, the more pressure your fence is likely to experience, the closer your post spacing should be. You can find more detailed fence specifications on our website here.
How much does professional installation cost?
The cost of installing a horse fence depends on materials, layout, and labor. A good rule of thumb is that professional installation typically runs 1 – 2 times the cost of the fence materials.
Many customers install their fences themselves, especially if they have some DIY experience. If you’re unsure, you can also hire a contractor just to set the posts and handle the groundwork, then install the rail or coated wire yourself.
Before deciding, review our installation guides and videos to see whether a DIY approach or hiring a professional is the better fit for you.
Can I build Horsecote® myself?
Many customers install their fences themselves, especially if they have some DIY experience. If you’re unsure, you can also hire a contractor just to set the posts and handle the groundwork, then install the rail or coated wire yourself.
Before deciding, review our installation guides and videos to see whether a DIY approach or hiring a professional is the better fit for you.
Does it work with any energizer?
Horsecote® is non-conductive, but we offer HotTop® and HotTop Plus® rails, both of which can be electrified. We also manufacture Hotcote®, our electrifiable coated wire.
All of our electrifiable rails and coated wire work with any low-impedance energizer. Be sure your energizer can supply enough charge for the full length of your fence.
Aim for a consistent voltage of 2,000–3,000 volts around the entire fence line.
As a general rule of thumb, choose an energizer with 1 joule of output per mile (1.6 km) of fence.
Will it keep my horses in?
Yes. A properly installed Horsecote® fence will have no trouble keeping your horses contained.
Each strand has a breaking strength of 1,320 lb (600kg). It will flex 6–8 inches on impact, but the high-tensile wire prevents the fence from stretching or losing tension.
If you have a known escape artist, consider using electrifiable HotTop® or Hotcote® and ensure the electric is kept on at all times.
Will it keep in animals besides horses?
Yes. Horsecote® can contain many animals besides horses, including cattle, ponies, donkeys, alpacas, and more.
Different animals place different demands on a fence. Animals that tend to lean or push may require an electric fence, while smaller animals may need a combination of rail and coated wire to prevent them from slipping through.
How does it compare to other fences?
Horsecote® reduces many of the safety risks that come with other types of fencing, such as broken boards, splinters, and sharp edges.
The cost is also an improvement. There are no boards to replace, no painting to keep up with, and lower vet bills.
Horsecote® can even add value to your property. Some customers have taken their Horsecote® with them when they moved because it lasts so long and can be reinstalled.
Explore more Horserail fencing
Coated Wire, Electric
Hotcote®
Coated wire with 3 conductive strips.
Rail, Non-Electric
Horserail®
Non-conductive rail.
Rail, Electric Top
HotTop®
Rail with an electrifiable strip on the top.
Rail, Electric Top & Bottom
HotTop Plus®
Rail with an electrifiable strip on the top & bottom.
Get the most out of your Horsecote®
Use the Right Hardware
Horsecote® hardware gives your fence the cleanest look, easiest installation, and longest life. It removes sharp edges, reduces wear, and helps your fence perform as designed.
Follow the Installation Guides
Our step-by-step guides show you (and your contractor) how to install Horsecote® correctly for the best appearance and performance. Review these before installation.
